Corrosion Resisting Heat Exchanger Tube , Gr2 Gr9 Seamless Titanium Tube
Description
| Item Name | Heat Exchange Titanium Tubes ASTM B338 Gr1 Ge2 Gr3 Gr7 Gr9 Gr12 Gr16 Seamless Titanium Pipe For Industrial |
| Grade | Gr1,Gr2,Gr3,Gr5,Gr7,Gr9 |
| Standard | ASTM B337,ASTM B338 |
| Specification | 1) OD12.7×0.889×L 2) OD15.88×0.889×L 3) OD19.05×0.55×L 4) OD12.7×0.55×L 5) OD25.4×1.0×L |
| Applications | (1) Heat exchangers and condensers (2) Corrosive fluid transmission pipeline system (3) Titanium bicycle tube, automobile exhaust pipe (4) Offshore aquaculture |
| Titanium tube for heat exchanger |
| Grade | Diameter(mm) | thickness(mm) | state | standard |
| GR1
GR2
GR3
GR7
GR12 | >10~15 | 0.5~2.0 | M | ASTM B338 |
| >15~20 | 0.6~2.5 | M |
| >20~30 | 0.6~3.0 | M |
| >30~40 | 1.0~3.5 | M |
| >40~50 | 1.25~3.5 | M |
| >50~60 | 1.5~4.0 | M |
| >60~80 | 1.5~4.5 | M |
| GR1
GR2
GR3
GR7
GR12 | 16 | 0.5~1.0 | M | ASTM B338 |
| 19 | 0.5~1.25 | M |
| 25,27 | 0.5~1.5 | M |
| 31,32,33 | 0.8~2.0 | M |
| 38 | 1.5~2.5 | M |
| 50,63 | 2.0~2.5 | M |
GR1 GR2
GR3 GR7
GR12 | 6~10 | 0.5~1.25 | M | ASTM B338 |
| >10~15 | 0.5~1.5 | M |
| >15~30 | 0.5~2.0 | M |
Stricktly implements the technical specification of ASTM B861/SB861, ASTM B338/ASME SB338.
Titanium Tube/Pipe Features:
Grade:
a) Gr.1(CP titanium, low oxygen)
b) Gr.2(CP titanium, standard oxygen)
c) Gr.7( Ti-Pa, standard oxygen)
d) Gr.9(Ti-3Al-2.5V)
e) Gr.11( Ti-Pa, low oxygen)
f) Gr.12(Ti-Mo-Ni)
g) Gr.16(Ti-Pa,standard oxygen)
h) Gr.17(Ti-Pa,low oxygen)
Sizes: Out Dia.:6.0-219mm
Wall thickness: 0.3-12mm
Length: within 18000mm
Products treatment: Annealed or CWSR

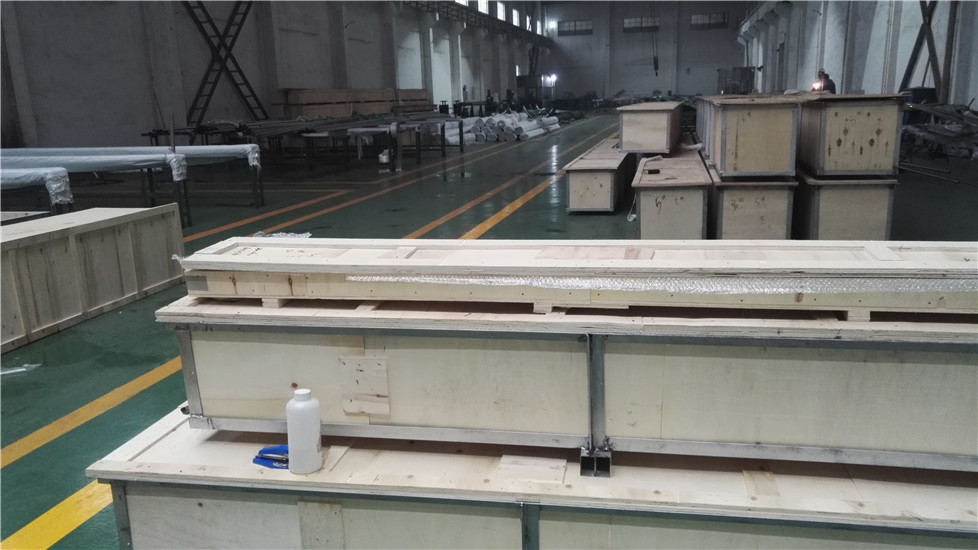

Package:Poly-wooden cases
